50kV 5kVA Insulation Tools Hipot Tester Insulated Gloves Boots Rods Leakage Current Test Set

Name: 50kV 5kVA Insulation Tools Hipot Tester Insulated Gloves Boots Rods Leakage Current Test Set
Brand: Sansion
Price: 645 USD

Wholesale 50kV 5kVA Insulation Tools Hipot Tester Insulated Gloves Boots Rods Leakage Current Test Set from china suppliers

MOQ : 1 Set

Price : 645

Place of Origin : China

Brand Name : Sansion

Certification : CE/CNAS/ISO9001

Packaging Details : Plywood Case

Payment Terms : L/C T/T

Supply Ability : 100 Units/Month

Model NO. : SXNYZ

Max Diameter of Workpiece : 900mm

Mass Scope of Workpiece : <900kg

Type : Safety Tool Testing Device

Maxcapacity : <1000KN

Accuracy Grade : 0.5

Load Way : Electronic Load

Loading Method : Dynamic Load

Display : LCD Display

Control : Computer Control

Weight : 0-100Kg

Power Source : AC 110V/220V at Customized

Oil Cylinder Position : No

Voltage Measuring Error : <±(0.2%U+0.02%Umax) U Is Reading Value, Umax Is up

Current Measuring Error : <±(0.2%I+0.02%Imax) I Is Reading Value, Imax Is up

Leakage Current Measuring Error : ±(0.5%I+2digits), I Is Reading Value

Test Subject 1 : Hot Stick / Live Line Tool Test

Test Subject 2 : Insulating Glove & Sleeve Test

Test Subject 3 : Dielectric Overshoe & Mat Test

Test Subject 4 : Voltage Detector / Phaser Test

Test Subject 5 : Insulating Blanket Test

Transport Package : Plywood Case

Specification : Customized

Trademark : Sansion

Origin : China

HS Code : 9030339000

Production Capacity : 100 Units/Month

Contact Now

Product Description

50kV 5kVA Insulation Tools Hipot Tester Insulated Gloves Boots Rods Leakage Current Test Set

General Information:

SXNYZ Sereis Insulation Gloves/ Boots Hipot Tester is a special equipment for withstand voltage test on insulation boots/ gloves/ rods and other insulation tools. It also can test the safety equipment, such as insulation screwdriver and insulation pad etc. The test equipment is comply with the advice of the majority of users. The product has improved work efficiency and protect the working security, it is an ideal special equipment for insulated boots (gloves) test.

Features:

• Multi-Channel Measurement: Supports high-voltage (HV), low-voltage current (LV), and six independent leakage current channels for comprehensive boot/glove testing.
• Real-Time Monitoring & Display: HV voltage, LV current, and all six leakage currents are monitored in real time, enabling precise identification of non-compliant items. Test results and duration are displayed directly.
• Comprehensive Protection: Features configurable over-voltage/current protection, output voltage/LV current limits, leakage current thresholds, and test time settings to meet diverse operational needs.
• Advanced Design: Anti-interference architecture ensures high stability, with audiovisual alarms. Full digital calibration replaces traditional potentiometers, enhancing safety and reliability.
• User Control: "Exit" button allows test termination at any time. Emergency stop button is provided for immediate shutdown in abnormal situations.

2. Technical specification:

Item	Parameter
Input voltage	AC220V 50Hz
Output voltage	0-50kV
Capacity	5kVA
Quantity of test	8 pieces each time
Display	LCD display, with all English operational menu
Protection fuction	over-current protection; over-voltage protection
Customize function	setting time, voltage and leak current value
Printer function	can print the voltage and leaked current value of each tested item
Measuring accuracy	Voltage ± 2% ( ± 3 digit ), current ± 2% ( ± 3 digit)
Weight	Controller: around 12kg
	Test vehicle: around 32.5kg
	HV transformer: around 45kg

Company Profile

50kV 5kVA Insulation Tools Hipot Tester Insulated Gloves Boots Rods Leakage Current Test Set

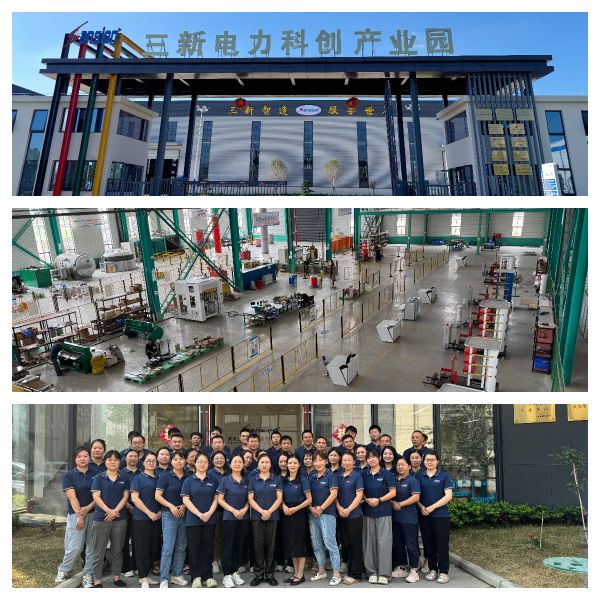

About Sansion

Sansion Power Electric Co., Ltd was established in 2005, a technocrat who have rich experience of more than 10 years in R&D, manufacturing and marketing of power electrical testing products, which are widely used in the fields of power electric, railroad, energy conservation and environment protection, water conservancy, petrochemical industry, aerospace and etc.
Main products:
HV Hipot Test Set System
Transformer Test Equipment
HV Switchgear Test Set
Relay Protection Tester
CT/PT Tester
SF6/Oil Tester
Transmission Line Test System
Insulation Resistance Tester
Earth Resistance Tester

Customer Visit

From the date of order placing, we usually need 3-7 working days to manufacturing. Located in Wuhan City, the provincial capital of China, Sansion Power is easy to ship the package by the air or ocean. Sansion Power also can provide OEM service according your customized. We are sincerely looking forward to cooperate with you from all the countries of the whole world.

Certifications

Sansion Power Electric contains R&D department, instruments manufacturing workshop, HV workshop, sample exhibition room, HV testing laboratory, quality control department, general office, sales departments, information office and etc, now we have more than 60 employees including 20 technical engineers. We have obtained the ISO9001 quality system certification and all products strictly conform to the international IEC or Chinese state standards.
