Accuracy Underground Submarine Cable Test Equipment Cable Load Cycling Test System

  • 1
  • 2
  • 3

MOQ : 1 Set

Price : US $6,000-28,000 /

Place of Origin : China

Brand Name : Sansion

Certification : CE/CNAS/ISO9001

Packaging Details : Plywood Case

Payment Terms : L/C T/T

Supply Ability : 100 Units/Month

Model NO. : SXCT

Max Diameter of Workpiece : <500mm

Mass Scope of Workpiece : <900kg

Type : Cable Heat Cycling Test System

Maxcapacity : <1000KN

Accuracy Grade : 0.5

Load Way : Electronic Load

Loading Method : Dynamic Load

Display : Digital

Control : Manual Control

Weight : 1000-2000Kg

Power Source : AC220V

Oil Cylinder Position : Without

Frequency : 50 or 60 Hz

Transport Package : Plywood Case

Specification : ISO9001 SGS

Trademark : Sansion

Origin : China

HS Code : 9030332000

Production Capacity : 100 Units/Month

Contact Now

Product Description
Underground Submarine Cable Test Equipment Cable Load Cycling Test System

Accuracy Underground Submarine Cable Test Equipment Cable Load Cycling Test System
Testing Applications:
1: Perform type testing of a cable sample in accordance with applicable international standards (IEC, IEEE, IPCEA, AEIC, VDE, EDF).
2: Perform inductive heating of cable samples and accessories.
3: Heated cable can be simultaneously stressed with DC or AC high voltage as well as impulse voltage with the inclusion of necessary options or by utilizing additional equipment.
The actual rating and design appropriate for a particular application depends on a number of factors.
• Conductor type and cross-section
• Insulation type and thickness
• Length of cable to be tested
• Ambient and test temperatures
• Time allowed to reach test temperature
Sansion Power Electric Co., Ltd. Offers:
√ Indoor/Outdoor units
√ Automated Controls
√ SCR (Electronic Regulator) or Variable Autotransformer controlled systems
√ Temperature Regulating Controls
√ Expanded testing capability for multiple units
√ Capacitive compensation to lower input power and regulator size
√ Standard models up to 6000 Amps
Specification:
MODEL
SXCT15-2000
SXCT30-3000
SXCT25-4000
SXCT20-5000
SXCT17-6000
INPUT
KVA
30/36
90/108
100/120
100/120
100/12
Frequency
50 or 60 Hz (one must be specified
OUTPUT
Voltage 60 Hz
0-18 V
0-36 V
0-30 V
0-24 V
0-20 V
Voltage 50 Hz
0-15 V
0-30 V
0-25 V
0-20 V
0-17
Current
0-2000 A
0-3000 A
0-4000 A
0-5000 A
0-6000
DUTY CYCLE
continuous
DIGITAL METERING
Output Currentmeter
4 digit digital meter displays TRMS value of output curren
Range
0-2000
0-3000
0-4000
0-5000
0-6000
Accuracy
+/-1% Full Scale
Output Voltmeter
4 digit digital meter displays TRMS value of output voltage
Range
0-18 V
0-36 V
0-30 V
0-24 V
0-20 V
Accuracy
+/-2% Full Scale
CABLES
Interconnect
20' (6 m)
Power and ground cables are not include
DIMENSIONS & WEIGHTS
Cart
Length
48" (1220 mm)
69" (1740 mm)
50" (1280 mm)
67" (1702 mm)
67" (1702 mm)
Width
25" (650 mm)
32" (813 mm)
29" (737 mm)
36" (914 mm)
36" (914 mm)
Height
42" (1060 mm)
52" (1320 mm)
37" (946 mm)
52" (1321 mm)
52" (1321 mm)
Weight
1500 lbs (680 kgs)
1700 lbs (770 kgs)
2200 lbs (998 kgs)
2850 lbs (1291 kgs)
2850 lbs (1291 kgs)
Controls
Length
20" (508 mm)
Width
17" (432 mm)
Height
12" (305 mm)
Weight
49 lbs (22 kgs)
Regulator
(R Style Units Only)
Length
28" (711 mm)
42" 1067 mm)
34" (864 mm)
56" 1422 mm)
56" 1422 mm)
Width
32" (813 mm)
32" (813 mm)
32" (813 mm)
32" (813 mm)
32" (813 mm)
Height
52" (1321 mm)
66" 1676 mm)
56" 1422 mm)
58" 1473 mm)
58" 1473 mm)
Weight
602 lbs (273 kgs)
1280 lbs (580 kgs)
1435 lbs (650 kgs)
1708 lbs (775 kgs)
1708 lbs (775 kgs)
NOTE: Other models are available upon request
Company Profile
Accuracy Underground Submarine Cable Test Equipment Cable Load Cycling Test System

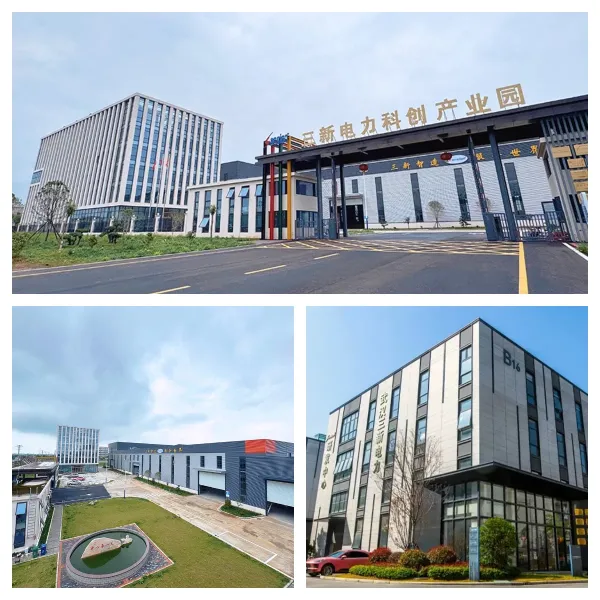

About Sansion
Sansion Power Electric was established in 2005, a technocrat who have rich experience of more than 20 years in R&D, manufacturing and marketing of power electrical testing products, which are widely used in the fields of power electric, railroad, energy conservation and environment protection, water conservancy, petrochemical industry, aerospace and etc.
Sansion Power Electric contains R&D department, instruments manufacturing workshop, HV workshop, sample exhibition room, HV testing laboratory, quality control department, general office, sales departments, information office and ete, now we have more than 80 employees including 20 technical engineers. We have obtained the IS09001 quality system certification and all products strictly conform to theinternational lEC and Chinese state standards.
Accuracy Underground Submarine Cable Test Equipment Cable Load Cycling Test System
Certifications
Accuracy Underground Submarine Cable Test Equipment Cable Load Cycling Test System
Accuracy Underground Submarine Cable Test Equipment Cable Load Cycling Test System
Packing & Delivery
Accuracy Underground Submarine Cable Test Equipment Cable Load Cycling Test System
Customer Visit
Accuracy Underground Submarine Cable Test Equipment Cable Load Cycling Test System
FAQ
Q1: Is your company a sales company or a manufacturer?
A: Sansion Power Electric Co., Ltd. is an industrial and trade enterprise, with its own factory, self-produced and self-sold. We were founded in 2005 and have twenty years of production experience. Our company has reliable production lines, test rooms and R&D centers.

Q2: Whether the goods are in stock, whether they can be customized, and how long the delivery time is?
A: After the goods have been ordered, we can be made to order according to the special requirements of customers by using the latest technology. The delivery time is usually within 10 working days if there are no accidents.
Q3: Is the quality guaranteed?
A: In order to ensure quality, we use imported components in large quantities. After three times of quality inspection, the goods can be sent out, and the export is uniformly packed in non-fumigation wooden boxes.
Q4: What are the after-sales terms?
A: What are the after-sales terms?
We offer free consulting service, one year warranty, and adopt various methods such as email communication, video calls, technology door-to-door, aiming to solve any after-sales problems in a timely manner.
Q5: What are the cooperative countries or regions?
A: Products have been successfully exported to the United States, French ,Brazil, Australia, Spain, Portugal , Oman ,Russia, the Netherlands, Indonesia, Bangladesh, Saudi Arabia, Chile, Colombia, Panama, Malaysia and other countries and regions.
